SICK LECTOR61x
Lector61x Image-based code readers
1D, 2D and DPM code identification using a compact camera - ideal for miniature codes as well.

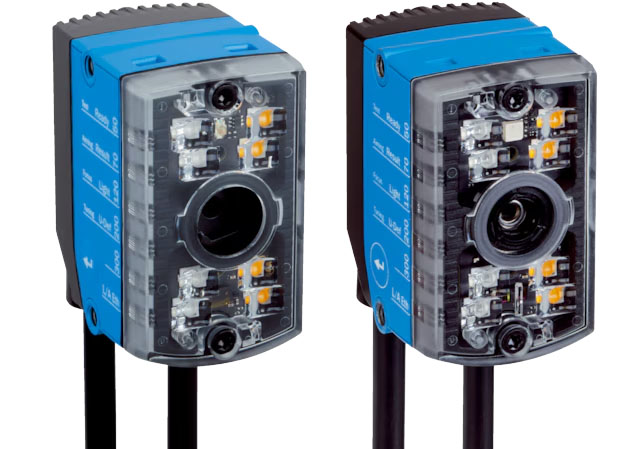

The Lector61x is the smallest image-based code reader of the Lector® series. It is used for the reliable detection of 1D, 2D and stacked codes and is characterized by excellent reading properties for very small codes, regardless of the surface quality or the material color.
The compact housing with flexible cable routing makes it the ideal code reader for production lines where space is tight. Its variable and infinitely adjustable focus position can be adjusted manually or via liquid lens technology, which enables it to be used at short and long reading distances. It can be quickly and cost-effectively installed thanks to the snap-in mounting feature.
Contact us for a quote or to order
- Flexible in use: small design, variable reading distances and reading of codes on different material colors
- Increase in productivity: code reading is possible even if the quality of the code is poor or if the surfaces are glossy
- Low-cost commissioning: snap-in mounting done in seconds and automatic parameterization
- An industrial trend: integrated optics with magnifier effect for mini codes on small components and integrated distance measurement
- Automatic focus adjustment for liquid lens device variants: for easy installation, greater depth of field, and longer production service life
- Powerful DPM code reader
- Compact design

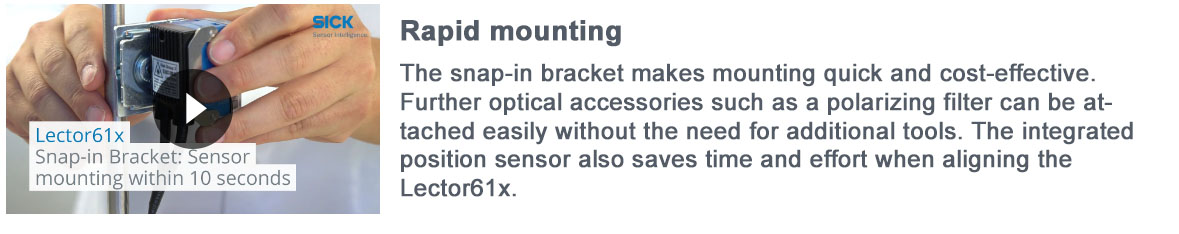

- Snap-in mounting done in seconds

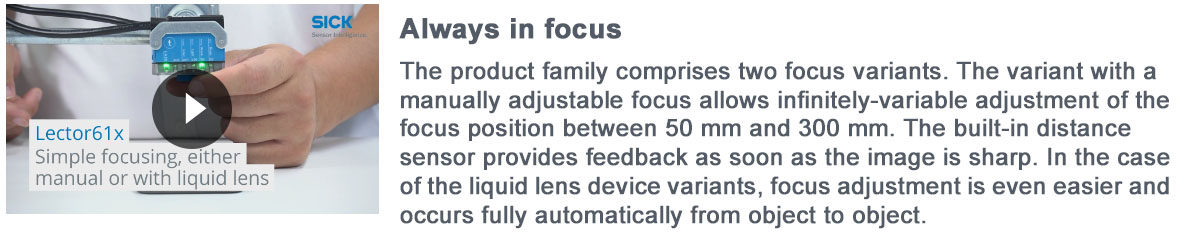

- Focus position can be adjusted manually or automatically via liquid lens technology
- Controllable multi-color lights with optional polarizing filter
- Magnifier effect for detection of the smallest codes

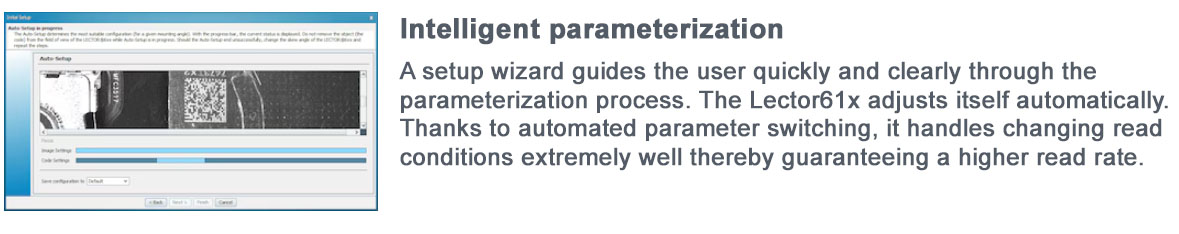

- Easy auto set-up
- Integrated laser distance measurement (ToF)
Reliable scanning technology optimized down to the smallest detail

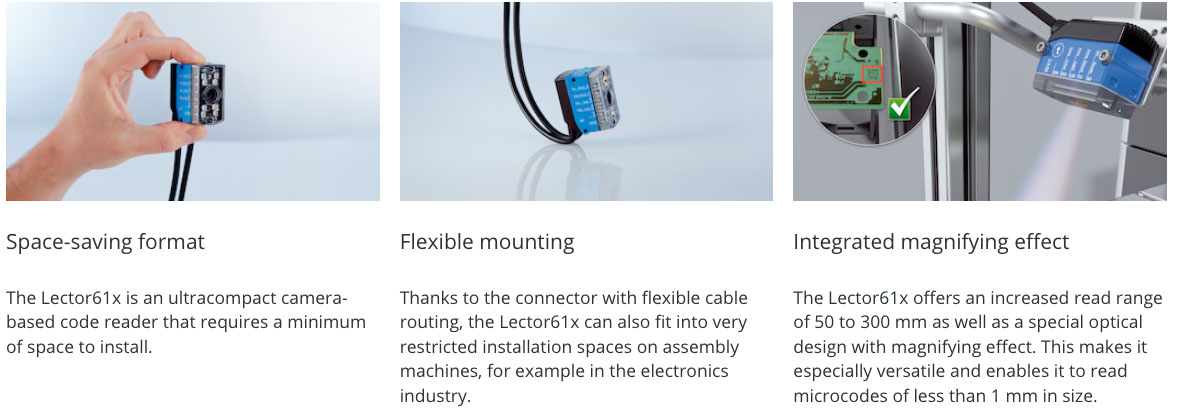

Saves space but not performance: The compact construction including connector with flexible cable routing, and the special optical design of the Lector61x make it suitable for a variety of applications in production lines where installation space is at a premium.
Ready for use in next to no time: Thanks to the rapid mounting, easy set up, and automated configuration, the Lector61x saves time, effort and therefore costs.
