SICK DGS80 Encoders
Rugged incremental encoder with large hollow shaft diameter
The DGS80 is an incremental encoder with large hollow shaft diameters up to 42 mm. It can be used in countless industrial automation applications. Combined with the many connection options of the DGS80, its supply voltage range of 5 V to 30 V facilitates integration into most control systems. The incremental encoder is characterized by quick and easy installation: This is made possible by its compact design, the clamping ring for speedy mounting, the universal stator couplings and the large selection of collets that simplify mounting on shafts of different size.
DGS80 AT A GLANCE
Benefits
Large hollow shaft diameters and a wide range of collets eliminate the need for special couplings and allow for quick and easy integration into numerous applications
Easy integration into control systems thanks to large supply voltage range
Reduction of installation time thanks to the easy-to-mount clamping ring and the stator couplings
Compact, space-saving design facilitates installation in tight installation spaces
Features
Pulse per revolution: Up to 8,192
Housing diameter: 81 mm, diameter of through hollow shaft: 30 mm or 42 mm
Enclosure rating: IP65
Communication interfaces: TTL, HTL

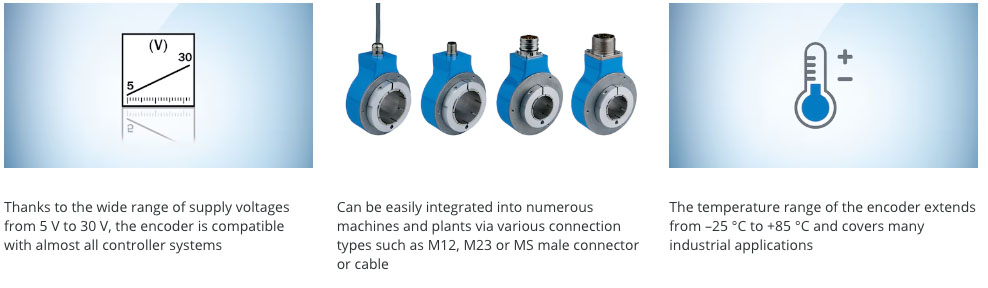

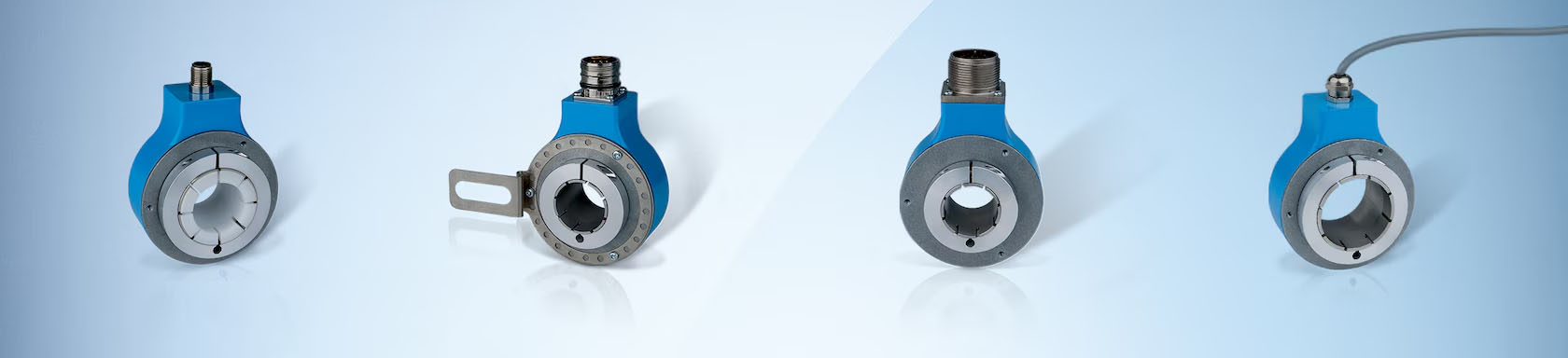

Connection types: M12, M23 and MS male connector and cable
Collets available as accessories for adjusting to shafts of different size
Can be used anywgere thanks to large diameter

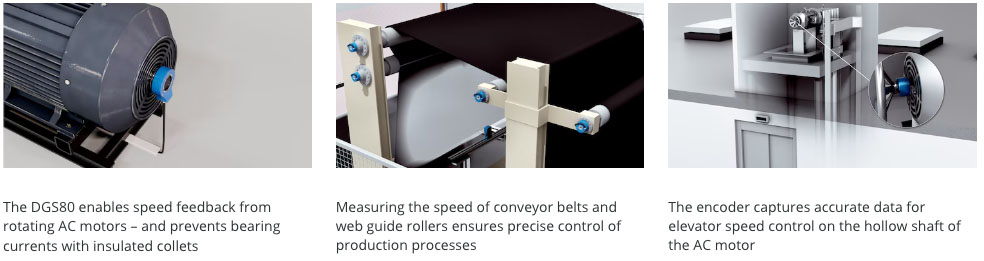

The DGS80 opens up new application options for incremental encoders: It reliably measures the rotation of large motor shafts up to a speed of 3,600 revolutions per minute. This is ensured by the large hollow shaft diameters of the encoder – 30 mm and 42 mm – and its individually adjustable, insulated collets. A cumbersome connection to a smaller encoder shaft is no longer necessary. This means that many applications can be implemented with this encoder, even if space for installing the device is limited.
Flexible integration into countless machine designs
The encoder is characterized by excellent compatibility: The DGS80 can be adapted to many different sizes of shaft and measures their rotations up to a speed of 3,600 revolutions per minute. It also features a wide range of connection options. The encoder can also be operated with very different supply voltages. Thanks to its universal design, the DGS80 can be integrated into almost any existing controller system.
Simple and time-saving installation
The DGS80 can be installed in just a few steps, regardless of the machine design. The slotted stator couplings ensure easy mounting of the encoder with high mounting flexibility at the same time. With a clamp ring, the DGS80 can also be quickly attached to hollow shafts. Its small external diameter of only 82 mm enables mounting even when space is at a premium. Thanks to its wide range of supply voltages, the DGS80 can be installed in almost any existing controller system without an upstream voltage regulator.
