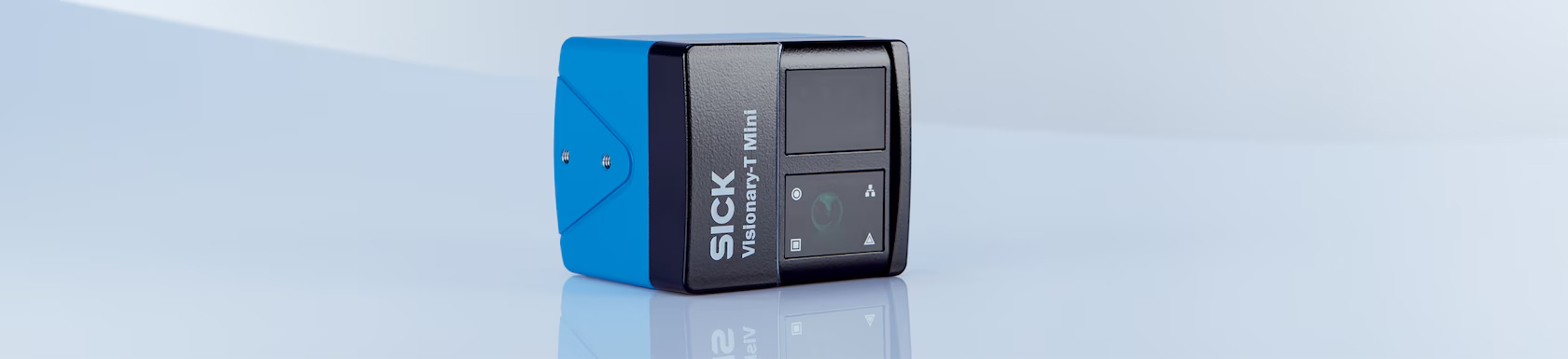

SICK Visionary-T-Mini
3D machine vision has never been easier
The compact Visionary-T Mini 3D snapshot cameras from SICK with their simple operation and excellent data quality provide the solution to virtually all industrial 3D machine vision requirements. Thanks to the advanced 3D time-of-flight technology, each pixel delivers extremely accurate depth and intensity data. The camera captures its surroundings extremely reliably even in strong light/dark contrast conditions and at long distances, and delivers precise data even for moving objects thanks to its very short image capture time. A clearly structured configuration tool makes it easy to parameterize the device and flexibly adapt the data to the specific application. This makes Visionary-T Mini an ideal, cost-efficient solution, e.g., for logistics, robotics or industrial vehicles.
Visionary-T Mini AT A GLANCE
Benefits
Cost-effective, compactly designed sensor for a multitude of applications
Accurate 3D and 2D data with a high pixel density for a reliable environment perception
Rugged camera for long-term industrial use
Visionary-T Mini CX: The versatile programming interface offers fast data availability for external data evaluation
Visionary-T Mini AP: Based on SICK AppSpace, it provides access to key apps and gives you the ability to create your own applications and load them on the camera
Easy-to-use software tools for custom device configuration and programming
Features
Up to 30 3D images per second at full resolution (512 × 424 pixels)
High data quality and image dynamics with a very large contrast range
Compact housing
Temperature range: –10 °C to +50 °C
Enclosure rating: IP65, 67
3D data transmission over industrial Gigabit Ethernet
ADVANTAGES
Suitable software solutions from SICK

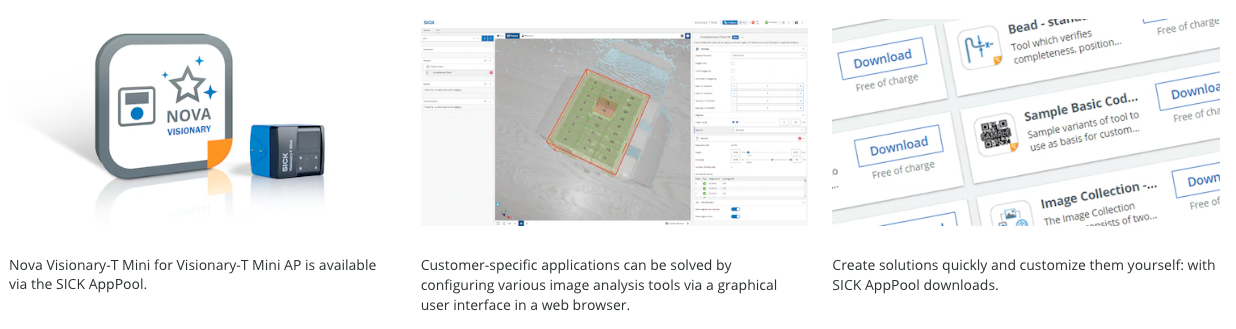

Go one step further with SICK Nova
By combining Visionary-T Mini AP with SICK Nova, applications in the area of machine vision can be implemented in a web browser without difficulty using a point and click configuration. This gives users the flexibility to combine tools for image processing and integrate them according to requirements to solve applications. But that's not all: With SICK Nova, users can download additional tools or even develop their own. This makes it possible to quickly and conveniently extend the functional scope to suit the particular application.

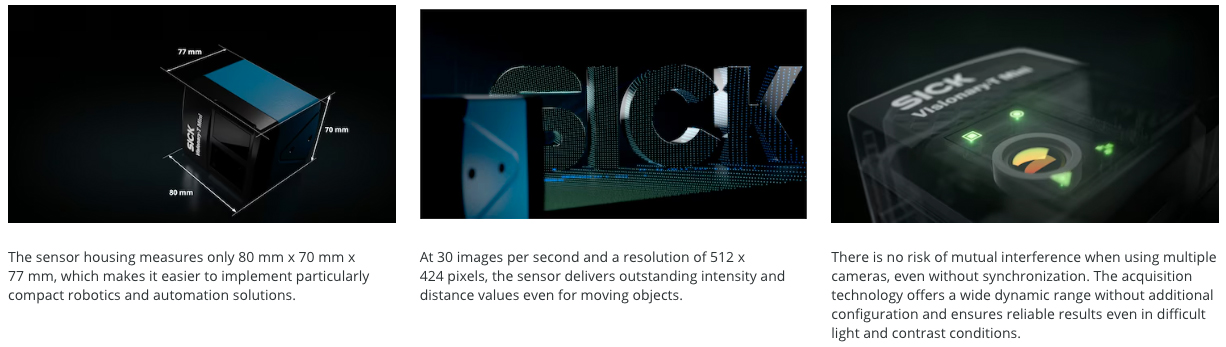

Compact housing and outstanding data quality thanks to 3D time-of-flight technology

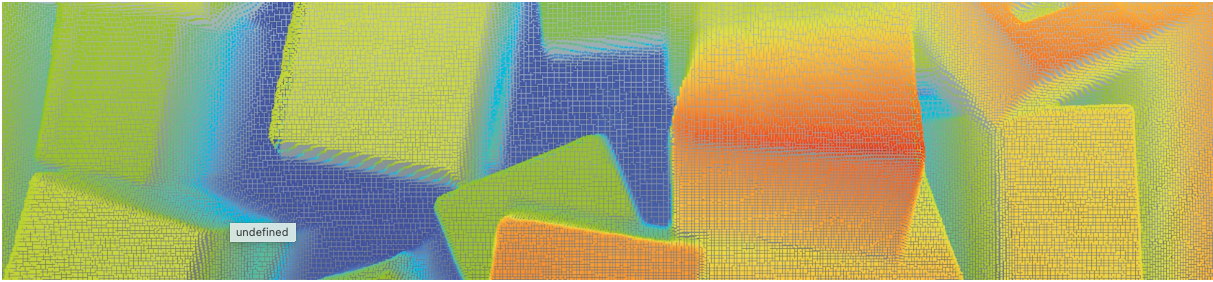

Automation applications for robotics, transport vehicles and logistics depend on precise and reliable 2D and 3D distance data. Vision systems need to be able to be effortlessly integrated into the particular machine design even when space is at a premium. The Visionary-T Mini product family combines performance with a compact construction and very high cost efficiency. For data evaluation, the 3D vision sensor provides, amongst other things, detailed 2D and 3D point clouds with a high pixel density. Automatic operating modes make it easier to integrate the device into a machine and ensure ease of use.
Compact design, excellent data quality, and user-friendly operating modes for ease of use
Cost-efficient solution for a multitude of 3D applications: The compact Visionary-T Mini can be integrated into almost any machine design and tailored to the application. The sensor provides a reliable data basis for demanding applications.
At home in countless industrial applications

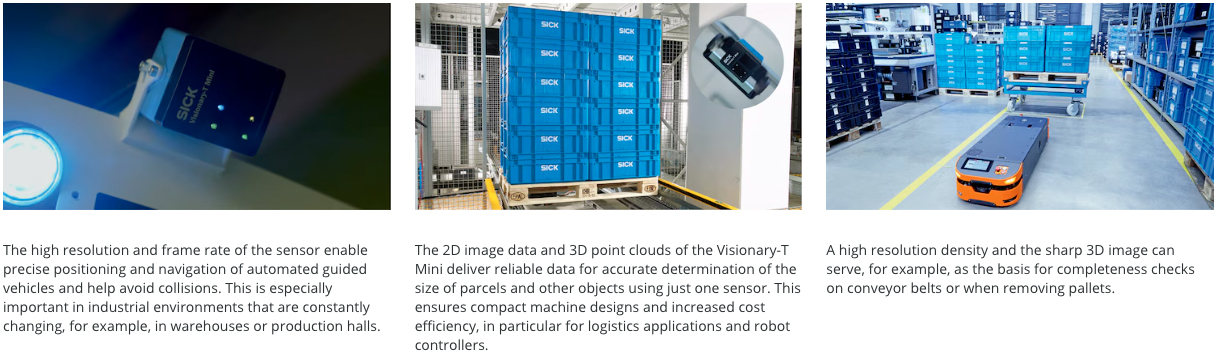

The Visionary-T Mini 3D vision sensor was developed especially for fast 3D environment perception in dynamic industrial applications. Example: When used in an automated guided vehicle system (AGV), the sensor records its environment at 30 images per seconds and does so over large distances. It thereby delivers continuous data for AGV system or object positioning. In robotics applications, the 2D and 3D images can be used, for example, as a basis for palletizing and picking tasks. The Visionary-T Mini can also be reliably used in static applications such as completeness checks at packaging machines.
During data integration, the Visionary-T Mini CX variant provides quick access to custom pre-configured and pre-filtered data. The Visionary-T Mini AP variant is programmable. This even makes it possible to perform custom further processing of data on the sensor and to solve applications partially or even fully on the sensor.
3D data acquisition in a dynamic environment, precise measurement data, and reliable object detection
The Visionary-T Mini ensures more efficiency in industrial production wherever reliable 3D depth values for dynamic processes are needed.
Precise 3D data in real time – thanks to time-of-flight technology
The Visionary-T Mini uses the latest time-of-flight technology to measure distances. This method involves emitting modulated infrared light that is then reflected back in the direction of the sensor by an object. The distance between the sensor and object can be calculated precisely based on the phase shift of the light. Different phase shifts equate to different distances. The individual pixels thereby deliver a detailed, three-dimensional distance and infrared intensity image of the recorded area.
High frame rate and measurement accuracy; state-of-the-art technology and system design ensure a high ambient light immunity
